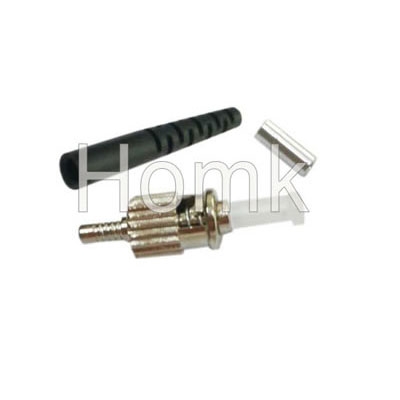

ST SM SX 2.0mm fiber optic connector
ST SM SX 2.0mm fiber optic connector
Applications:
Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Industrial; Military; Premise installations
Features:
—Low insertion loss and back reflection loss
—Ferrule end surface pre-domed
—High precision alignment
—Nickel plated brass body
—Free-floating ceramic ferrule
—Bayonet style housing for easy termination
| Item | LC, SC, ST, FC, MTRJ, MU, etc | ||
| Type | Multi-Mode | Single-Mode | |
| Light Characteristic | Operating Wavelength | 850nm& 1300nm | 1310nm & 1550nm |
| Typical Insertion Loss | 0.2dB & 0.2dB | 0.2dB & 0.2dB | |
| Mechanical Testing | Repeatability | ≤ 0.2dB | |
| Exchange | ≤ 0.2dB | ||
| Durability | > 1000 (Times) | ||
| Temperature | Storage Temperature | 25 ~+85 | |
| Operating Temperature | 25 ~+85 | ||
| Length, Color, Out-Diameter, Fiber counts | According to the customers’ requirement | ||
