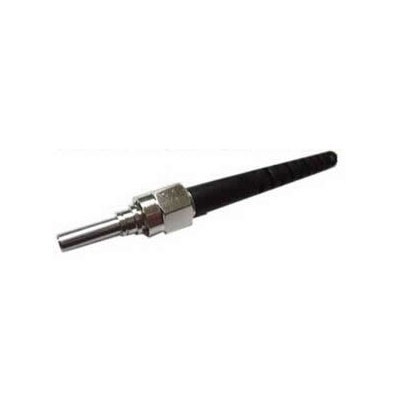

3.0mm SM SMA905 Fiber Optic Connector Kit

3.0mm SM SMA905 Fiber Optic Connector Kit

Specifications

Fiberoptic patch cord
Manufacturer
100% tested before delivery
Custom Cable, Connector…
Good Quality at Fair Price

Features
1. Low insertion loss and back reflection loss
2. Ferrule end surface pre-domed
3. Boots in a variety colors
4. Telcordia style boots
5. Free-floating ceramic ferrule

Applications
1. Active device termination
2. Multimedia
3. Premise installations
4. Telecommunication networks

Insertion Loss; Single mode<=0.2dB & Multimode<=0.3dB
Return Loss; PC>=50dB, UPC>=55dB & APC>=65dB
Durablity <0.2dB typical change, 1000 mating
Operating Temperature; -40 to 80
Ferrule Hole Sizes;
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode;
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um

Availability

The connector can be supplied as a pre-assenbled one piece or one piece or as connector kit.
Clips are avaliable for SC and LC duplex connector.
Boots in a varity of colors.
PC and APC, UPC are availiable.
