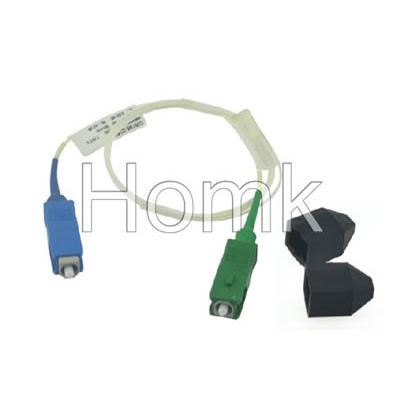

SC APC-SC PC 0.9mm Single-mode Fiber Patch Cord
Product name : SC APC-SC PC 0.9mm Single-mode Fiber Patch Cord
Products Category: > Fiber Patch Cord
SC APC-SC PC 0.9mm Single-mode Fiber Patch Cord
SC fiber Patch cord has a molded plastic plug casing and a push/pull locking system.
SC to SC is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment.
SC patch cord Features:
Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability
SC patch cord Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
SC/UPC patch cord Specification:
|
Parameter
|
SM(Max) | MM(Max) |
|
Insertion loss
|
≤0.3dB
|
≤0.3dB
|
| Return loss |
≥50dB
|
≥35dB
|
|
Operating temperature
|
-40℃∽+80℃
|
-40℃∽+80℃
|
SC/APC patch cord Specification:
| Parameter | SM(Max) |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥60dB |
| Operating temperature | -40℃∽+80℃ |
