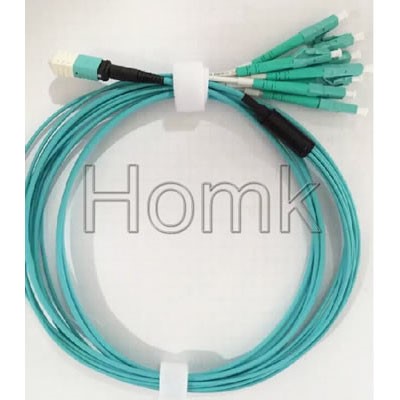

OM3 MPO-LC 8F Fiber Optic Patch Cord

Factory High-Quality OM3 24F MPO-LC Fiber Optic Patch Cord manufactured   by Homk is available in Female or Male MTP or  MPO connectors. Options  are MPO-LC, MPO-SC, MPO-ST, MPO-FC and the MTP  versions are MTP-LC,  MTP-SC, MTP-ST, MTP-FC fiber optic patch cable, and  fiber optic cable  assemblies. An UPC/APC/PC single mode or multimode  round cable  assemblies are optional. The fan-out/breakout cables are  ideal  connection to patch panels and data distribution routing. These  can be  made with 12 fiber MTP MPO connectors, 24 Fiber MTP MPO  connectors or  48 Fiber MTP MPO connector variations. Many additional  options and  combinations are available. All multi fiber optic cables are   customizable.

Specification

8 x Fiber Ferrule MPO/MTP connector female (Un-pinned) or male (Pinned)

12, 48, 72, 96, 144 cores versions available

LSZH, OFNP, OFNR cable jacket types selection

Simplex and Duplex LC/SC/FC/MU/ST tails generic options

High  density: Ruggedized fan-out  allows for direct connection between  backbone and active equipment  eliminating rack space usage.

Rapid deployment: Factory terminated modular system saves installation and reconfiguration time during moves, ads and changes.

Reliability:  100% tested –  combination of high quality components and manufacturing  quality  control guarantees product to the highest standards.



Features

Compliant with IEC 61754-7

Compliant with Telcordia GR-1435-CORE



Usage

Data Centre Infrastructure

Storage Area Network- Fiber Channel



Technical Data

Type	Single-mode		Single-mode		Multi-mode
	(APC polish)		(PC polish)		(PC polish)
Fiber count	8, 12, 24 etc.		8, 12, 24 etc.		8, 12, 24 etc.
Fiber type	G652D, G657A1 etc.		G652D, G657A1 etc.		OM1, OM2, OM3 etc.
Maximum Insertion Loss	Elite	Standard	Elite	Standard	Elite	Standard
	Low Loss		Low Loss		Low Loss
	≤0.35 dB	≤0.70 dB	≤0.35 dB	≤0.70 dB	≤0.35dB	≤0.60dB
Return Loss	≥60 dB		≥60 dB		N/A
Durability	≥500 times		≥500 times		≥500 times
Operating Temperature	-40℃ ~ +80℃		-40℃~ +80℃		-40℃~ +80℃
Test Wavelength	1310nm		1310nm		850nm
