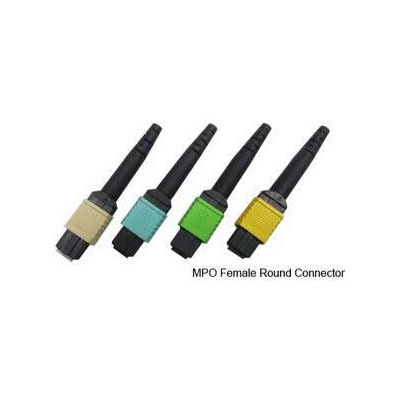

MPO Female Round Fiber Optic Connector

MPO Female Round Fiber Optic Connector

Specifications

Fiberoptic patch cord
Manufacturer
100% tested before delivery
Custom Cable, Connector…
Good Quality at Fair Price

1. Low insertion loss: 0.2dB
2. Compliance with TIA/IEA, IEC, RoHS
3. Zirconia ferrules

Specification:
Insertion loss: 0.2dB Max.
Return loss(dB): ≥ 50(PC), ≥ 55(UPC), ≥ 65(APC)
Durability: 1000 time matings
Operating Temp: -40 to +85 celsius
Storage Temp: -40 to +120 celsius

Technical Standard:
· Insertion Loss: PC≤ 0.2dB, UPC≤ 0.2dB, APC≤ 0.3dB; Typical0.1dB;
· Return Loss: SM PC≥ 50dB, UPC≥ 50dB, APC≥ 65dB; MM PC≥ 45dB, UPC≥ 45dB
· Interchangeability: ≤ 0.2dB
· Salt Spray: ≤ 0.2dB
· Repeatability: (1000 times) ≤ 0.1dB
· Vibration: (550Hz 1.5mm) ≤ 0.1dB
· High Temperature: ( +85 sustain 100 hours) ≤ 0.2dB
· Low Temperature: (-40 sustain 100 hours) ≤ 0.2dB
· Temperature Circularly: (-40+85 sustain 100 hours) ≤ 0.2dB
· Humidity: (+25+65 93 R. H. 100 hours) ≤ 0.2dB
· Apex Offset: 0μ M≤ ≤ 50μ M

Features
1. Meet IEC, Telcordia-GR-326 and JIS performance requirement
2. RoHS Compliance
3.100% will be inspected before shipment
4. High interface performance
5. Latched push-pull integrated.
6. Differential colour coded
7. UL standard accessories

Application:
1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets, CATV, WAN, FTTP
5. Connection at the desk for LAN environments

Order information:
Fiber cores; Singel, dual.
Cable diameter(mm): 0.9/ 2.0 /3.0 mm
Fiber type: PC UPC APC
Connector type: SC, FC, LC, ST, MTRJ, DIN, D4
