Shenzhen Homk Telecom Tech Co., Ltd.

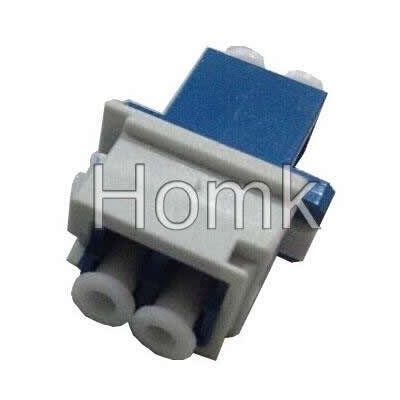

LC Single Mode Duplex Fiber Adapter
LC Single Mode Duplex Fiber Adapter
SC Fiber Optic Adapter, LC Fiber Optic Adapter, FC Fiber Optic Adapter,
ST Fiber Opitc Adapter, MU Fiber Optic Adapter, MTRJ Fiber Optic Adapter,
E2000 Fiber Optic Adapter, D4 Fiber Optic Adapter
Feature:
Good inerchangeability
Environmentally Stable and Reliable
Accurate Size
Excellent Return Loss
Applicable standard: IEC 61754-13
Complete Hybrid adapter
Technical Standard:
Insertion Loss ≤0.2dB
Retentiveness 200-600g
Mating Durability1000 times≤ 0.2dB
Exchangeability: < 0.2dB
Salt Spray: ≤ 0.2dB
Sleeve material: ceramic / metal
Temperature Rang -40 to +85
SPECIFICATIONS (Hybrid type adapter)
| ITEM | PARAMETER | |
| Applicative adapter type | SC,LC,FC,ST,MU,D4,DIN | |
| Fiber mode | Single mode | Multi-mode |
| Adapter color | Blue, green, metal | Beige, metal |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | typical≤0.15dB,Max≤0.20dB | typical≤0.15dB,Max≤0.20dB |
| Repeatability | ≤0.10dB | |
| Interchangeability | ≤0.20dB | |
| Durability | ≤0.20dB Max change,1000 mating | |
| Channels | Simplex,Duplex,4channels | |
| Body material | Plastic or metal | |
| Sleeve material | Ceramic(ZrO2) or Customized | |
| Operating Temperature | -20ºC to +70ºC | |
| Storage Temperature | -40ºC to +85ºC | |
