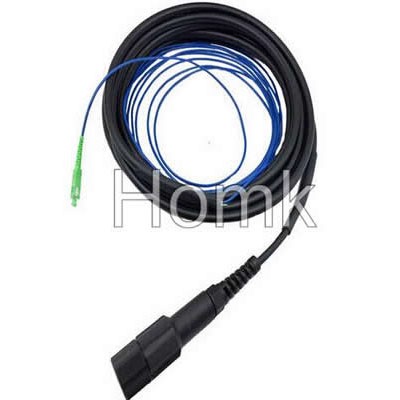

Waterproof fiber PDLC patch cord
Product name : Waterproof fiber PDLC patch cord
Products Category: > Waterproof Fiber Series Products
Waterproof fiber PDLC patch cord
Description:
The PDLC connectors, together with the support optical cable, are becoming the standard interface specified in 3G,
4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications. The product however, is not limited to the above applications. The PDLC cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP67.
They are well suited for Industrial and Aerospace and Defense applications.
Features:
●Standard Duplex LC connector, well connected with standard LC adaptor
● Available Single mode and Multimode
● IP67 protection, salt-mist proof, humidity proof,dust proof
● Aluminum housing, compact design
● Broad temperature range and wide range of indoor and outdoor cables
● Easy Operation, reliable and cost-effective Installation
Specifications
Insertion loss IEC6130 | Singlemode | Typ.<0.2dB | 98%<0.5dB |
Multimode | Typ.<0.2dB | 98%<0.4dB | |
Return loss | Singlemode | >50dB |
