Waterproof LC SM7.0mm 2 cores FTTA outdoor patchcord with high…
Product name : Waterproof LC SM7.0mm 2 cores FTTA outdoor patchcord with high…
Products Category: > Waterproof Fiber Series Products

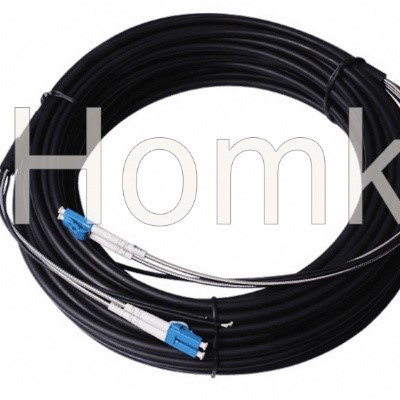

Waterproof LC SM7.0mm 2 cores FTTA outdoor patchcord with high quality
1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5, Meet various requirements of market and clients.
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Cable Parameters
|
Fiber Count
|
Cable Dimension/mm
|
Cable Weight/g
|
Tensile/N
|
Crush N/100mm
|
Min. Bend Radius/mm
|
Range of Temperature
|
|||
|
2
|
5.0±0.2
|
35
|
long term
|
short term
|
long term
|
short term
|
Dynamic
|
Static
|
|
|
500
|
1000
|
500
|
2000
|
10D
|
20D
|
-60~+85
|
|||
Connector Specification
|
Item
|
PARAMETER
|
|
Connector type
|
LC/UPC, SC/UPC, FC/UPC, ST/UPC. Optional
|
|
Fiber type
|
Single mode 1310/1550 or multimode 850/1300
|
|
Inertion loss
|
SM ≤0.2dB MM ≤0.2dB
|
|
Returen loss
|
SM ≥50dB MM ≥35dB
|
|
Repeatability
|
≤0.1
|
|
Interchangeability
|
≤0.2dB
|
|
Durability
|
≤0.2dB
|
|
Fiber Length
|
1m ,2m,3m …..any length for optional
|
|
Length and tolerance
|
+10cm
|
|
Operating Temperature
|
-45~85℃
|
|
Storage Temperature
|
-45~85℃
|
