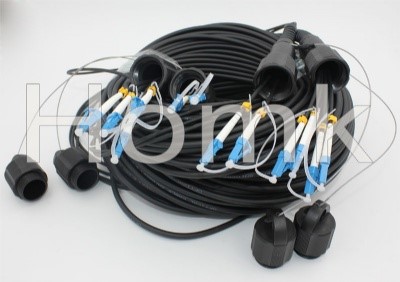

Waterproof PDLC 6 Core outdoor Fiber Patch Cord
Product name : Waterproof PDLC 6 Core outdoor Fiber Patch Cord
Products Category: > Waterproof Fiber Series Products
Waterproof PDLC 6 Core outdoor Fiber Patch Cord
Features
Specification:
The PDLC Waterproof patch cord used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
1. Standard Duplex LC connector, well connected with standard LC adaptor
2. Available Single mode and Multimode
3. IP67 protection, salt-mist proof, humidity proof, dust proof
4. Low insertion/return loss, steady optical transmitting.
5. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
Applications
1. Widely used in FTTA & FTTH
2. Used for 3G 4G base station
3. BBU, RRU, RRH, LTE
Cable Parameters:
| Fiber Count | Cable Dimension
mm |
Cable Weight
kg/km |
Tensile
N |
Crush
N/100mm |
Min. Bend Radius
mm |
Range of Temperature
|
|||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||
Structure:
Connector Specification:
| ITEM | PARAMETER |
| Connector type | DLC/UPC . PDLC |
| Insertion Loss | <=0.3db |
| Return Loss | >=50db |
| Fiber mode | Single mode 9/125 |
| Operating wavelength | 1310nm, 1550nm |
| Test wavelength | 1310nm, 1550nm |
| Repeatability | <=0.1 |
| Interchangeability | <=0.2dB |
| Durability | <=0.2dB |
| Fiber Length | 1m, 2m….. any length optional. |
| Length and tolerance | 10cm |
| Operating Temperature | -40C ~ +85C |
| Storage Temperature | -40C ~ +85C |
