Shenzhen Homk Telecom Tech Co., Ltd.
Sliding rack-mounted Terminal box
Product name : Sliding rack-mounted Terminal box
Products Category: > Fiber Splice Closure & ODF & Terminal box

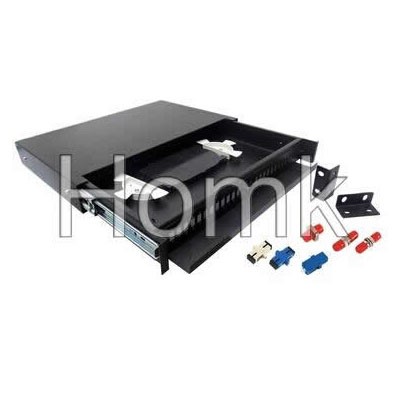

Sliding rack-mounted Terminal box
Fiber Management Tray also called ODF Terminal Box, Integrated Splicing and Distribution ODF.
It is mainly used for cable inlet, grounding and fixing and the splicing between the terminal end and pigtail.
Users can select unit or ring flange amount according to their practical needs.
Features:
1) Working temperature: -5°C – +40°C
2) Environmental temperature: -25°C – +55°C
3) Relative humidity: ≤85%((when the temperature is below 30°C))
4) Atmosphere pressure: 70 Kpa~106Kpa
5) Insertion loss: ≤0.3dB
6) Return loss: PC≥40 dB UPC≥50dB APC≥60dB
7) Insulating resistance between the box and the earthing device:1000MΩ/500VDC
8) Voltage-resistance between the box and the earthing device: Under the effect of 3kv/DC/1min, non-puncture,
and no arc-over.
