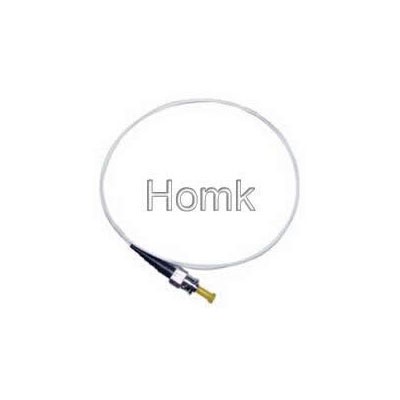

ST Armoured Fiber Optic Pigtail
ST Armoured Fiber Optic Pigtail
Feature:
1.Low insertion loss and back reflection loss
2.Good echangeability
3.Good Durability
4.High temperature stability.
5.Standard: Telcordia GR-326-CORE
6.Precise connector
7.Excellent mechanical capability
8.Patch cords accord with bellcord GR-326 ,ISO9001,RoHS
Specification:
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss | Typical ≤0.2dB
Maximum ≤0.3dB |
≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times mating) | ||
| Tensile Strengh | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
