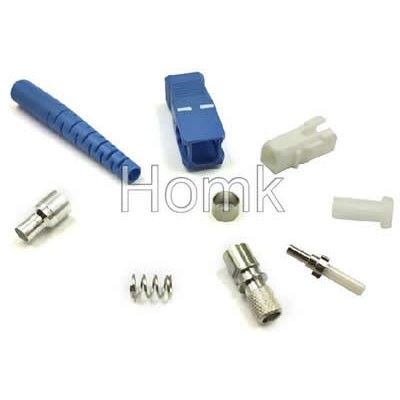

SC/PC SM 2.00mm Fiber Optic Connector

SC/PC SM 2.00mm Fiber Optic Connector

Features:
Zirconia ferrule
Precise dimension
Low insertion loss
High return loss
Convenience and ease of handling
Environmentally stable

Application:
Telecommunications
LAN
CATV Networks
Active Device Termination
Industrial and Military
Instrumentation
FTTX

Specifications:
Insertion Loss: Single mode l≤ 0.20dB & Multimode ≤ 0.25dB
Return Loss: UPC ≥ 50 dB, SPC ≥ 55 dB & APC ≥ 65 dB
Durability <0.20 dB typical change, 1000 mating
Operating Temperature: -40 to 80 C
Ceramic Ferrule Hole Sizes:
Single mode: 125.0 1/-0&mu; m, Concentricity: &le; 1.0&mu; m, 125.5 1/-0&mu; m, Concentricity: &le; 1.0&mu; m, 126.0 1/-0&mu; m, Concentricity: &le; 1.0&mu; m
Multi mode: 125&mu; m, Concentricity: 1&le; 3&mu; m or 127&mu; m, Concentricity: 1&le; 3&mu; m or 128&mu; m, Concentricity: 1&le; 3&mu; m
