ODVA-LC waterproof fiber optic connector
Product name : ODVA-LC waterproof fiber optic connector
Products Category: > Waterproof Fiber Series Products

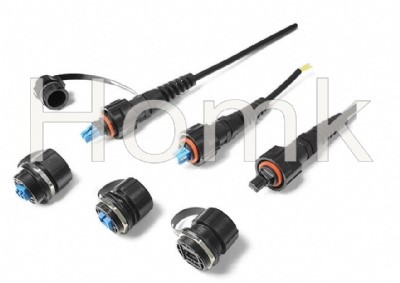

ODVA-LC waterproof fiber optic connector
Application
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Specification
Cable Parameters
|
Fiber Count
|
Cable Dimension/mm
|
Cable Weight/g
|
Tensile/N
|
Crush N/100mm
|
Min. Bend Radius/mm
|
Range of Temperature
|
|||
|
2
|
7.0±0.2
|
42.3
|
long term
|
short term
|
long term
|
short term
|
Dynamic
|
Static
|
|
|
200
|
400
|
1100
|
2200
|
20D
|
10D
|
-30~+70
|
|||
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;
|
Item
|
Unit
|
Specifications
|
|
Attenuation
|
dB/km
|
1310nm≤0.4 1550nm≤0.3
|
|
Dispersion
|
Ps/nm.km
|
1285~1330nm≤3.5 1550nm≤18.0
|
|
Zero dispersion wavelength
|
Nm
|
1300~1324
|
|
Zero dispersion slope
|
Ps/nm.km
|
≤0.095
|
|
Fiber cutoff wavelength
|
Nm
|
≤1260
|
|
Mode field diameter
|
Um
|
9.2±0.5
|
|
Mode field concentricity
|
Um
|
≤0.8
|
|
Cladding diameter
|
Um
|
125±1.0
|
|
Cladding non-circularity
|
%
|
≤1.0
|
|
Coating/cladding concentricity error
|
Um
|
≤12.5
|
|
Coating diameter
|
Um
|
245±10
|
|
bending, dependence induced attenuation
|
1550nm, 1turns,32mm diameter 100rums,60mm diameter
|
≤0.5 db
|
|
Proof test
|
kpsi
|
≥100
|
Connector Specification
|
Item
|
PARAMETER
|
|
Connector type
|
LC/UPC, SC/UPC, FC/UPC, ST/UPC. Optional
|
|
Fiber type
|
Single mode 1310/1550 or multimode 850/1300
|
|
Inertion loss
|
SM ≤0.2dB MM ≤0.2dB
|
|
Returen loss
|
SM ≥50dB MM ≥35dB
|
|
Repeatability
|
≤0.1
|
|
Interchangeability
|
≤0.2dB
|
|
Durability
|
≤0.2dB
|
|
Fiber Length
|
1m ,2m,3m …..any length for optional
|
|
Length and tolerance
|
+10cm
|
|
Operating Temperature
|
-45~85℃
|
|
Storage Temperature
|
-45~85℃
|
