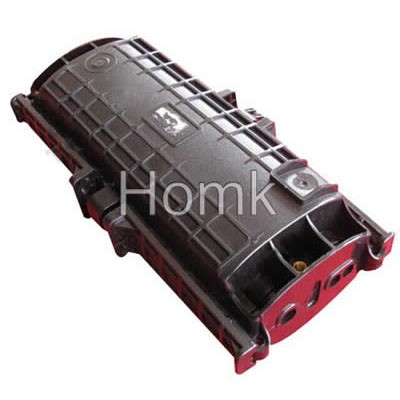

Horizontal fiber optic splice closure

Horizontal fiber optic splice closure

The fiber optic splice closure is Good sealing, waterproof, moistureproof, not being corroded, repeatable open, expansion, maintenance, multiple connection
1. Seal Performance: After the fiber optic splice closure are sealed, then pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.
2. Re-encapsulation Performance: The fiber optic splice closure are pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure after three times of repeat encapsulation
3. Components: Seal tape, Insulation tape, Nylon tie, optical cable heat shrinkable sleeve, mental hook, seal fittings, numeral bar, retaining ring
4. Inner and external push button can insure good sealing
5. Environmental temperature: -40 to +85
6. Atmospheric pressure: 76kpa~106kpa(0m~5000m)
