Fiber Optic Distribution Box
Product name : Fiber Optic Distribution Box
Products Category: > Fiber Splice Closure & ODF & Terminal box
Fiber Optic Distribution Box
Description
- Available for small capacity communication system,wall mounting,reasonable and compact structure,harmonized with machine room
- The cabinet is composed of two parts,one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.
- Provide fusion and storage applicance for optical cables
- Reliable protection appliance of fixing,stripping and earthing for optical cables.
- Whole range protected design for fiber lay to ensure the bending radius=40mm
- Provide various accessores to avoid any unexpected damage to the fiber

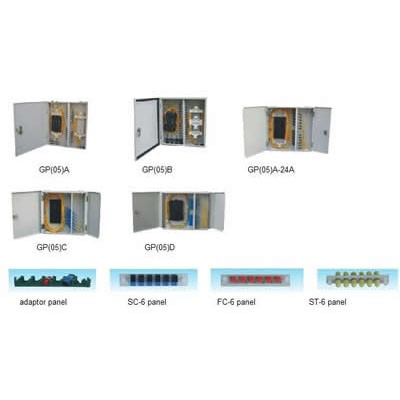

Order Guide
|
Type
|
Dimension(mm)
|
Max capacity cores
|
Remark
|
|
GP(05)A-24
|
455*405*80
|
24
|
cold rolled steel sheet,electrostatic spraying.Provide 24-72 adaptors,available for FC,ST,SC,LC . Fit for wall mounting
|
|
GP(05)A-48
|
455*405*120
|
48
|
|
|
GP(05)A-72
|
455*405*150
|
72
|
|
|
GP(05)B-48
|
455*405*120
|
48
|
cold rolled steel sheet,electrostatic spraying.Provide 48-72 adaptors,available for FC,ST,SC,LC . Fit for wall mounting
|
|
GP(05)B-72
|
455*405*150
|
72
|
|
|
GP(05)A-24A
|
350*350*80
|
24
|
cold rolled steel sheet,electrostatic spraying.Provide 12-24 adaptors,available for FC,ST,SC,LC . Fit for wall mounting
|
|
GP(05)C-FC12
|
350*300*80
|
12
|
|
|
GP(05)C-SC12
|
|||
|
GP(05)D-FC24
|
24
|
||
|
GP(05)D-SC24
|
Packing information
|
Model
|
Inner carton size
(mm)
|
Inner carton weight (kg)
|
Packing size
(mm)
|
Weight
(kg)
|
No./carton
|
|
GP(05)A-24
|
480*430*110
|
7.0
|
500*450*490
|
29.5
|
4
|
|
GP(05)A-48
|
480*430*150
|
8.0
|
500*450*490
|
25.5
|
3
|
|
GP(05)A-72
|
480*430*180
|
9.0
|
500*450*390
|
19.5
|
2
|
|
GP(05)B-48
|
480*430*150
|
8.5
|
500*450*490
|
27.0
|
3
|
|
GP(05)B-72
|
480*430*180
|
9.5
|
500*450*390
|
20.5
|
2
|
|
GP(05)A-24A
|
385*385*115
|
3.8
|
405*405*605
|
20.8
|
5
|
|
GP(05)C-FC12
|
385*335*115
|
3.6kg
|
405*355*605
|
19.5
|
|
|
GP(05)C-SC12
|
|||||
|
GP(05)D-FC24
|
|||||
|
GP(05)D-SC24
|
