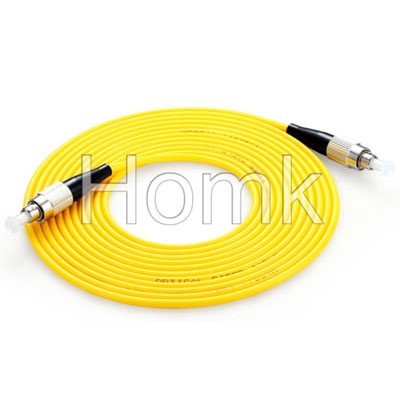

FC UPC-FC UPC SM SX Fiber Patch Cord
FC UPC-FC UPC SM SX Fiber Patch Cord
Our optical fiber FC patch cord is high return loss and low insertion loss ,Insertion loss of FC fiber patch cord is less than 0.3dB,Return loss of fiber FC patch cord is UPC more than 55dB ,APC is more than 60dB
Standard: IEC, Telcordia GR-326-CORE
Polish:PC/UPC/APC
Operating temperature range: -40°C–80°C
Storage temperature range: -40°C–80°C
Tensile strength: >10kg
Fiber cable diameter: 0.9mm, 2.0mm, 3.0mm fiber is available,Fiber jacket PVC or LSZH cable is available,Fiber FC optic patch cord with excellent changeability and repeatability
| Spec. | fiber optic patch cord |
| Insertion loss | Less than 0.2dB |
| Return loss | MM more than 35dB |
| SM more than 55dB | |
| APC more than 60dB | |
| Repeatability | Less than 0.2dB |
| Changeability | Less than 0.1dB |
| Operting termperature | -40°C~80°C |
| Storage temperature | -40°C~80°C |
| Tensile strength | >10kg |
| Min.bending radius | 35mm |
| Length | Customized |
