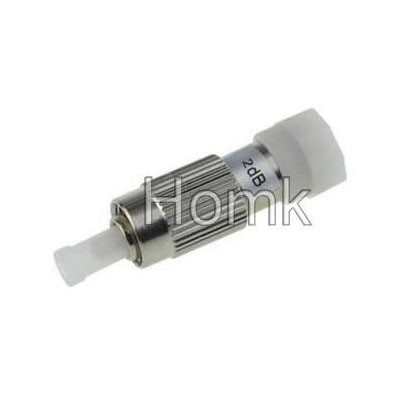

FC 2dB Male to Female fiber attenuator
FC 2dB Male to Female fiber attenuator
Feature
- High return loss fiber optic attenuator
- Max operation power(1W)
- Low wavelength relativity fiber optic attenuator
- Low polarization related loss fiber optic attenuator
- Compact design
Fiber optic attenuator Application
- Fiber optical distributing frame
- Fiber optical network system
- Hi-speed fiber optical transmission system
- CATV system
- Long distance DWDM system
- Optical add-drop multiplexers (OADM)
Fiber attenuator Specifications
| Attenuation value | 1 3 5 10 15 20 25 dB |
| Attenuation precision | <5dB±0.3dB <10dB±0.5dB >10dB±10% |
| Return loss | PC >45dB |
| Operation wavelength | 1310nm and 1550nm(SM) |
| Polarization loss | <0.1dB |
| Operation temperature | -40℃ ~ +75℃ |
| Storage temperature | -40℃ ~ +85℃ |
| Temperature(Unencapsulation) | 95%RH Apply Telecordia standard(GR-910-CORE) |
