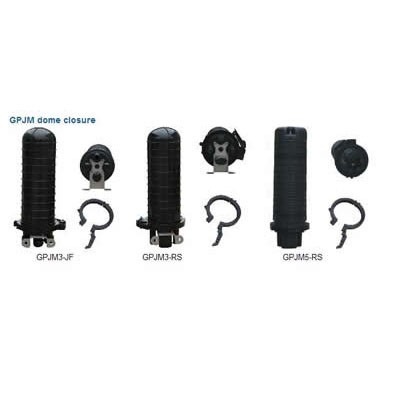

Dome closure(GPJM)
Dome closure(GPJM)
Description:
1. Suitable for aerial, duct,and underground application
2. Valve option for pressure testing
3. Engineering plastic body filled with silicon rubber and sealed with hoop,
heat shrinkable tube and mechanical sealing for your choice.
4.Quick open clamped dome-base design
5. Reliable gasket sealing,reopened repeatedly without changing sealing material.
6. Suitable for ribbon and non-ribbon fibers
|
Item
|
GPJM3-JF
|
GPJM3-RS
|
GPJM5-RS
|
|
Size (mm）
|
Ф190×410
|
Ф190×435
|
Ф210×540
|
|
Weight (kg)
|
2.34
|
||
|
Cable diameter
|
Ф7～Ф22
|
Ф7～Ф22
|
Ф7～Ф22
|
|
Cable ports
|
2 in,2 out
|
2 in,2 out
|
3 in,3 out
|
|
Splice tray cores
|
24(single）
|
12/24（single）
|
24（single）/72(ribbon)
|
|
No. of splice tray
|
4
|
4
|
4
|
|
Max capacity
|
96(single）
|
96（single）
|
96(single)/288（ribbon）
|
|
Cable entry sealing
|
Screw mechanical
|
Heat-shrinkable sealing
|
Heat-shrinkable sealing
|
|
Sealing structure
|
Silicon gum
|
Silicon gum
|
Silicon gum
|
Packing information:
|
Type
|
Net size
(mm)
|
Net weight
(kg)
|
Outer carton size (mm)
|
Outer carton weight (kg)
|
No.per carton (pcs)
|
|
GPJM3-JF
|
420x170x205
|
2.4
|
550x450x450
|
15.5
|
6
|
|
GPJM3-RS
|
445x170x205
|
2.3
|
550x450x480
|
15.0
|
6
|
|
GPJM5-RS
|
550x220x190
|
3.5
|
465x405x575
|
15.6
|
4
|
