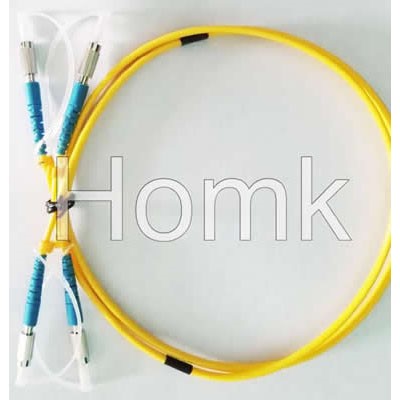

DIN Duplex Patch Cord

DIN Duplex Patch Cord

Application •Long Distance Trunk Network, Metropolitan Area Network, Access Network l •DWDM System •Fiber CATV Network, Fiber Data Network •Optical Active Accessories Features •Low insertion loss, •High return loss •Good repeatability and exchangeability •Functional Index Product Type Connector A Connector B End Face Patch Cords DIN DIN UPC Form Factor Fiber Type Diameter Length Simplex/Duplex Single Mode Fiber Or Multi-mode Fiber 3.0mm, 2.0mm, 0.9mm Customized lengths (1m/2m/3m…+10CM) Insertion Loss Return Loss Operating Temperature Interface Detection SM:Typical Value 0.2 Max 0.3 MM: Typical Value 0.1 Max 0.3 UPC≥50 -25~+70/-40~+80/-40~+75°C SM: NO visible scratches when inspected at 400X MM: NO visible scratches when inspected at 200X Exchangeability(dB) Plug Time(time) Repeatability(dB) Warranty ≤0.2 ≥1000 ≤0.1 One year
