144 core Fiber Optical Distribution Frame

144 core Fiber Optical Distribution Frame

Product  Description

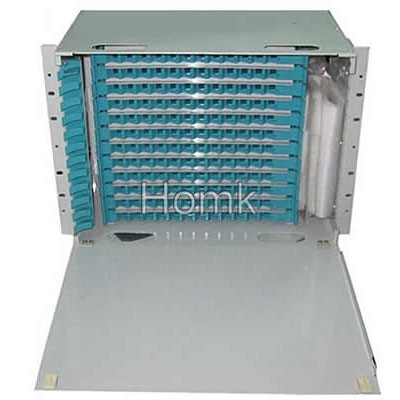

ODF Fiber optic patch panel is also called fiber distribution panel. Its main function is to terminate the fiber optic cable
and provide connection access to the cable’s individual fibers. Fiber patch panels are termination units, which are
designed to provide a secure, organized chamber for housing connectors and splice units. Fiber patch panels are
available in rack mounted or wall mounted. Both types can house, organize, manage and protect fiber optic cable,
splices and connectors. Rack mount panels is usually 19″ or 23″ universal width. The height of patch panel can be
1u, 2u, 3u, 4u, 6u, etc. The opening of the optical fiber patch panels can be slidable or fixed or revolving. Wall mount
patch panel is more customized, it can be any structure and dimension. And the patch panels can be used for indoor
or outdoor application.

Features

Standard size, light weight and reasonable structure

Splice tray inside changeable

Can be used in 19”, 23” standard distribution frame

Suitable for ribbon and single fiber

Various panel plate to fit different adapter interface

Front mark on the plate is easy for identification and operation

24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters

Easy for management and operation

ODF Electricity Performance

1. Insertion loss: <0.3dB
2. Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
3. Insulating resistance between the box and the earthing device: 1000M&Omega; /500VDC
4. Voltage- resistance between the box and the earthing device: Under the effect of 3kv/DC/1min, non-puncture,
and no arc-over.

Application

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/WAN

CATV
