Shenzhen Homk Telecom Tech Co., Ltd.

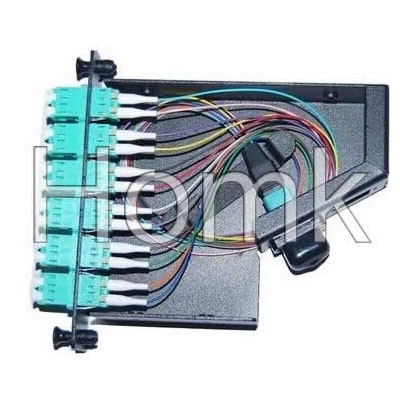

12 Core LC to MPO Optical Fiber Terminal Box
Product name : 12 Core LC to MPO Optical Fiber Terminal Box
Products Category: > Fiber Splice Closure & ODF & Terminal box
12 Core LC to MPO Optical Fiber Terminal Box
Description:
1.12-fiber MPO(M) to LC duplex connector
2.All metal compact breakout protector, leading internal crimp process, most reliable.
3.LC end with number tube label, easy identification.
4.Available in G and L class help your budget control.
5.Available divider type or join type LC duplex.
6.All length cable is available based on your demand.
Applications
- Data Centre Infrastructure
- Storage Area Network-Fiber Channel
- Emerging 40 & 100Gps Protocols
Parameters
| Multi Mode | Single Mode | ||
| IL | MPO | Single max :0.35db (L) Single Max : 0.60db (G) | Single max :0.35db (L) Single max :0.75db (G) |
| LC | MAX :0.10dB(L) MAX :0.15 db (G) | max :0.30db | |
| RL | MPO | >20DB | >60DB (8 degree Angle Polish ) |
| LC | >30db | >50 db (UPC) >60DB(APC) | |
| Mechanical | MPO | <0.2DB, 200 times insertion | |
| LC | <0.2db, 500times intertion | ||
| Working Temp | -20~ +60 ‘C | ||
| Enviromental | Storage Temp | -40~ + 70’C | |
| Install Temp | -5~ + 50’C |
