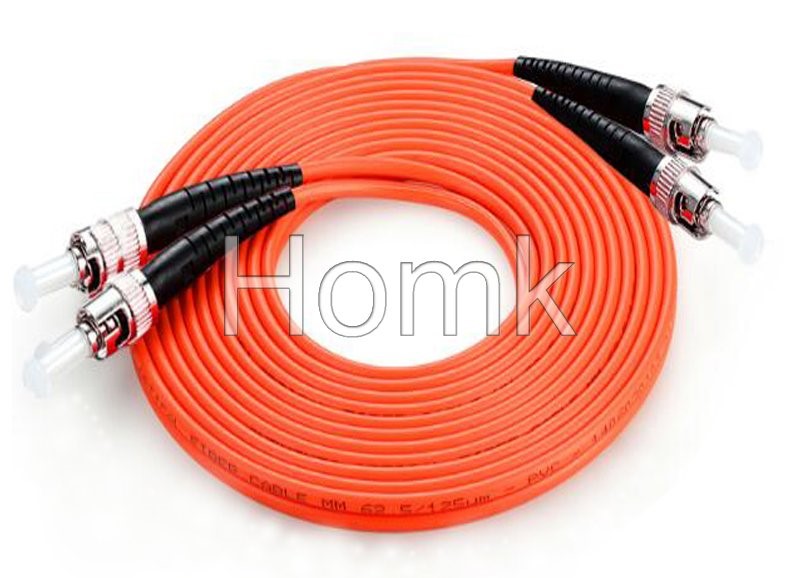

STPC to STPC 3m MMDX Fiber Optic Patch Cord
STPC to STPC 3m MMDX Fiber Optic Patch Cord
Features:
1.Low insertion loss and back reflection loss fiber optic patch cord
2.Optical fiber patch cord with good echangeability
3.Connectors with good durability
4.High temperature stability fiber optic patch cord.
5.Standard: Telcordia GR-326-CORE
Specification:
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss | Typical ≤0.2dB
Maximum ≤0.3dB |
≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times mating) | ||
| Tensile Strengh | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
