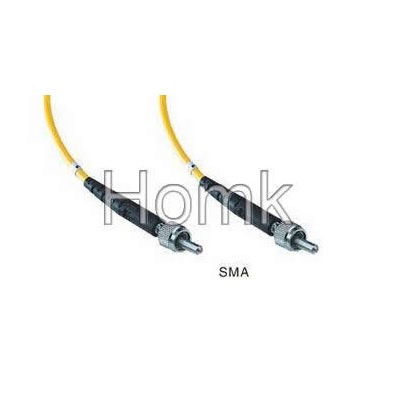

SMA Fiber Pigtail
SMA Fiber Pigtail
Features:
1. Light in weight\energy saving and safe
2. High bandwidth\excellent flexibility\vibration resistance
3. Anti-electromagnetic interference\stable and reliable signal transmission
4. Heat and code resistant(-20- 70 Celsius Degrees)
5. Easy to install and connect, maintenance easily
6. Complied with YD/T 1447-2006 and YD/T 1258.6-2006, the state communications industry standard.
| Parameters | Unit | Numerical value |
| Fiber diameter | mm | 1.0 , 0.5, 0.75 |
| Cable diameter | mm | 2.2± 0.1 or 1.0± 0.05 |
| Fiber material | — | PMMA |
| Jacket material | — | PE |
| Attenuation | dB/m | ≤ 0.2 |
| Insertion loss | dB | < 0.5 |
| NA | — | 0.5 |
| Wavelength | nm | 650 |
| Incident angle | — | ≤ 60° |
| Bandwidth | MHz· 100m | ≥ 10 |
| Cable length | m | 1~100m to order |
| Bend radius | — | ≥ 10 times of fiber dia. |
| Operating temperature | Celsius Degrees | -20~70 |
| Storage temperature | Celsius Degree | -20~70 |
| Refractive index | — | Step index |
