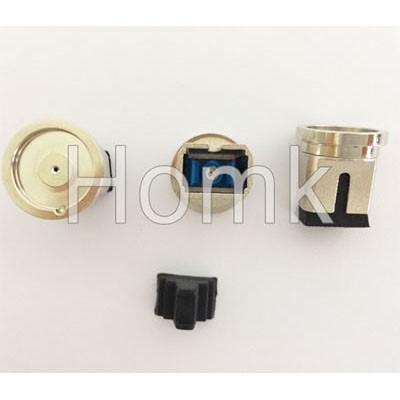

SC/PC fiber adapter of HK-7S IL&RL tester
SC/PC fiber adapter of HK-7S IL&RL tester
Description
Fiber optic adapters are used in connecting fiber optic connectors.
It’s called Hybrid fiber optic adapter when the opposite connectors are different.
Features
- Low insertion loss, high return loss
- Good compatibility
- High reliability & stability
- Compact design
- Comply with YD/T 127.2.3-2005 specifications
- High precision of mechanical dimensions
- Nickel plated brass body
- Ceramic or Bronze Sleeve
Applications
- Local Area Networks
- CATV System
- Telecommunication Network
- Equipment Test
Technical Parameter
| Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU | MTRJ | E2000 | ||||||
| SM | MM | SM | MM | SM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | APC | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
| Repeatability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
| Durability | Time | >1000 | >1000 | >1000 | ||||||
| Operating Temperature | °C | -40~75 | -40~75 | -40~75 | ||||||
| Storage Temperature | °C | -45~85 | -45~85 | -45~85 | ||||||
| Plug and Unplug force (g/f) | 200—600 | |||||||||
| Spec | Simplex and Duplex | |||||||||
