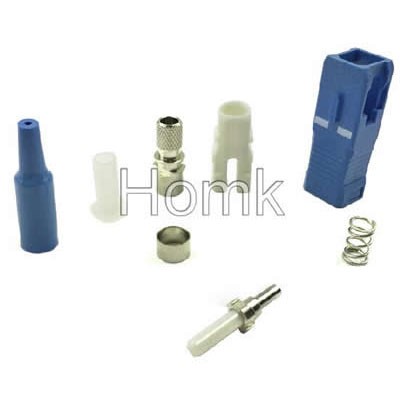

SC/PC 3.0mm fiber connector kits
SC/PC 3.0mm fiber connector kits
Optical fiber connector kits
Insertion Loss: Single mode ≤ 0.2dB & Multimode ≤ 0.3dB
Return Loss: PC ≥ 50dB, UPC ≥ 55dB & APC ≥ 65dB
Durablity <0.2dB typical change, 1000 mating
Operating Temperature: -40 to 80
Ferrule Hole Sizes;
Singlemode:
125.0+1/-0um, concentricity ≤ 1.0um
125.5+1/-0um, concentricity ≤ 1.0um
126.0+1/-0um, concentricity ≤ 1.0um
Multimode:
125um concentricity ≤ 3um
127um concentricity ≤ 3um
128um concentricity ≤ 3um
Availablity:
-The connector can be supplied as a pre-assembled one piece connector or as connector kits and one piece.
-Clips are available for SC and LC duplex connectors
-PC and APC are available
-Boots in a variety of colors
Light Characteristic:
| Item: | LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc |
| Type: | Multi-Mode Single-Mode |
| Operating Wavelength | 850nm& 1300nm 1310nm & 1550nm |
| Typical Insertion Loss | 0.2dB & 0.2dB 0.2dB & 0.2dB |
| Mechanical Testing Repeatability | ≤ 0.2dB |
| Durability | > 1000 (Times) |
| Exchange | ≤ 0.2dB |
| Temperature Storage Temperature | 25 ~+85°c |
| Operating Temperature | 25 ~+85°c |
| Length, Color, Out-Diameter, Fiber counts | According to the customers’ requirement |
