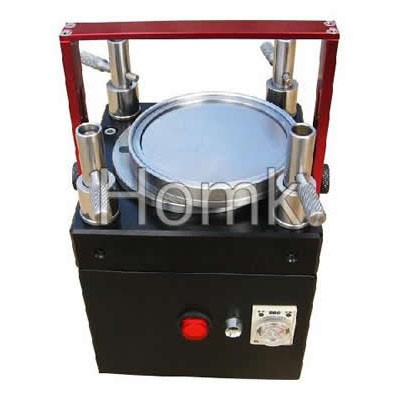

Portable polishing machine HK-P

Portable polishing machine HK-P

1. This HK-P has extremely small sized, for high portability in the laboratory or in the field. And portable polishing machine is environmental protection, the portable polishing machine is simple design easy to operate and carry in the laboratory and outdoors.

2. This machine has high performance and extremely portable polishing for a variety of applications ergonomic, the portable polishing machine is simple design for ease-of-use.

3. The polisher is perfect for Re-Work, R&D research and development, Low Volume Production. In addition, this portable polishing machine most suitable laboratory environment, environmental and engineering applications or a small connector repair.

Insert Loss 0.3 dB (SM) 0.2 dB (MM)
Return Loss 50 dB (PC) 60 dB (APC)
Radius 10~25mm
Offset 50 μ M
Under cut 50nm
Repeatability 0.1dB
Interchangeability 0.2 dB

Parameter
1. Applicable Connectors: FC, SC, ST, MU, LC, E2000, MPO, MTP, MTRJ UPC or APC and so on,
2. Weight: 2.85Kg
3. Dimensions: 120mm W x 130mm D x 180mm H
4. Power: 12vDC
5. Polishing Time: 0 – 30 sec. (1 piece timer)
6. Polishing Method: Rotation & revolution
7. Motor speed: 100rpm/rotation
3.
3rpm/revolution
8. Power: 15W
9. Polishing capacity: 1-6connectors
10 Voltage: 12VDC
11. Plate size/ Film size: 68mm
