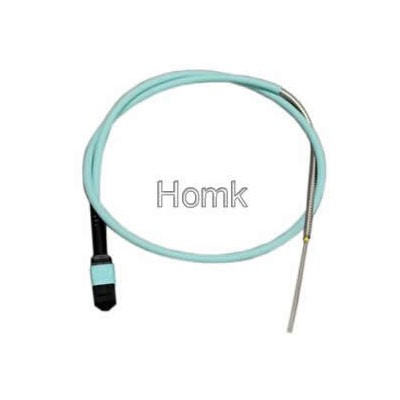

MPO/MTP OM3 Armoured Fiber Optic Pigtail
Product name : MPO/MTP OM3 Armoured Fiber Optic Pigtail
Products Category: > Fiber Optic Pigtail & Loopback
MPO/MTP OM3 Armoured Fiber Optic Pigtail
Product description
Fiber Optic Pigtail is used to interconnect Transmission equipment to the Fiber optic patch panel.
The Pigtail made by SAILING supports longer distance with lower loss for gigabit Ethernet, fiber channeland internet protocol applications. It is Specifically designed for use with today’s narrower aperture components.
Specifications
1. Insertion loss:(Single-mode)PC≤0.3dB,UPC≤0.2dB APC≤0.2dB (Multi- mode):PC≤0.2dB
2. Return loss:PC≥45dB,UPC≥50dB APC≥65dB
3. Durability(1000times):≤0.2dB
4. Temperature range:-40 — +80
Performance Advantages
1. Compliance with the standard of IEC and YD-T826/1996
2. High return loss and Low insertion loss
3. Good reliability& stability
4. Three types:PC/UPC/APC
5. Simplex and Duplex cable
6. Cable diameter:Φ0.9/Φ2/Φ3
Application
1. Telecommunication Networks
2. Test Equipment
3. Local Area Network
4. CATV
Technology parameter
| Style | Single-model UPC | Single-model APC | Multi-model PC |
| Insert loss (dB) | ≤0.20 | ||
| Max insert loss(dB) | ≤0.30 | ||
| Repeatability(dB) | ≤0.10 | ||
| Return loss (dB) | ≥50 | ≥60 | ≥35 |
| Operating temperature | -20-+60 centigrade | ||
| Storage temperature | -40-+85 centigrade | ||
