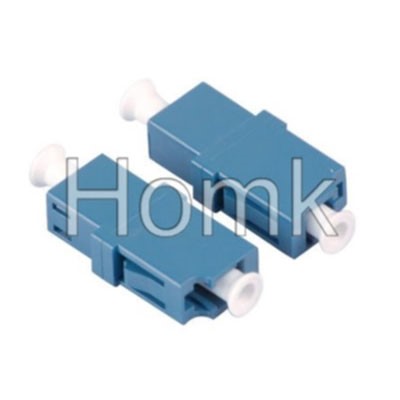

LC/UPC SM SX LC-LC Fiber Optic Adapter
LC/UPC SM SX LC-LC Fiber Optic Adapter
Single Mode LC/UPC Fiber Opitcal Adapter Description: Fiber optic adapter is also called fiber optic coupler. It contains the interconnect sleeve, that holds the two ferrules together.It is used to provide a cable to cable fiber connection. Features: 1, LC/SC/FC/ST Type Optional 2, UPC or APC Optional 3, SM or MM Optional 4, With/Without flange Optional 5, Simplex , Duplex or Quad Optional 6, Zirconia Sleeve,Compact design 7, Low insertional loss, High return loss 8, Comply with IEC, Telcordia GR 326 and JIS standard Application: CATV Telecommunication networks Test equipment Local Area Networks(LANs) Data processing networks
| Parameter | ||
| Mode | S.M (Zroz) | M.M (P.B) |
| Insertion Loss | ≤0.2 dB | ≤0.3 dB |
| Mating Durability(500 times) | ≤0.2 dB | |
| Operating Temperature(°C) | -40°C~+75°C | |
| Parameter | ||
| Return Loss | ≥45 dB ( SPC ) , ≥55 dB ( UPC ),≥65 dB ( APC ) | |
| Attenuation Tolerance (dB) | 1-10dB<±1.0dB | |
| 11-25dB<±10% | ||
| 1-10dB<±0.5dB | ||
| 11-25dB<±5% | ||
| Operating Wavelength (nm) | 1310±10nm | |
| 1550±10nm | ||
| 1310 and 1550±10nm | ||
| Operating Temperature(°C) | -40°C+~75°C | |
