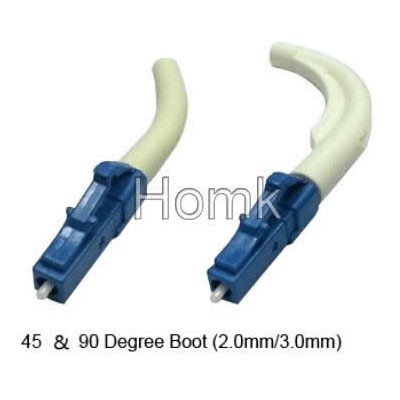

LC SM 45/90 degree connector
LC SM 45/90 degree connector
Homk provides an extensive line of fiber optic connectors / adapters that offer superior low loss performance with very high repeatability. like SC Fiber Optic connectors / adapters , LC Fiber Optic connectors / adapters , FC Fiber Optic connectors/adapters , ST Fiber Opitc connectors / adapters , MU Fiber Optic connectors / adapters , MTRJ Fiber Optic connectors / adapters , E2000 Fiber Optic connectors / adapters , D4 Fiber Optic connectors / adapters ,LX.5 Fiber Optic connectors / adapters
Specifications
1.SM MM Ferrule
2.45 90 degree boot
3.0.9 / 2.0 / 3.0mm Boot
4.Blue Beige Green Red Black White Boot
5.RoHS, SGS Complia
Fetures
Compliant with Telcordia,GR-326-CORE,TIA/EIA and IEC
Superior Quality Standard PC/UPC/APC Polishing
Customer Defined Specifications
RoHS Compliance
Environmental Stable
Low Insertion Loss & back Reflection
Applications
CATV Networks
Telecommunication Networks
Local Area Networks
FTTH and FTTx
Active Device Termination
Testing Instruments
| SPECIFICATIONS | ||
| Single mode | Multimode | |
| Insertion Loss | ≤0.20dB | ≤0.30dB |
| Return Loss | PC ≥50 dB APC ≥60 dB | |
| Durability | ≤0.2 dB typical change, 1000 matings | |
| Operating Temperature | -40 to + 85°C | -40 to + 85°C |
| Ferrule Spec
|
125.0+1/-0μm, Concentricity: ≤1.0μm | 125μm, Concentricity: ≤3μm |
| 125.3+1/-0μm, Concentricity: ≤1.0μm | 127μm, Concentricity: ≤3μm | |
| 125.5+1/-0μm, Concentricity: ≤1.0μm | 128μm, Concentricity: ≤3μm | |
| 126.0+1/-0μm, Concentricity: ≤1.0μm | ||
|
Parameter
|
Unit
|
LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU
|
MTRJ
|
E2000
|
||||||
|
SM
|
MM
|
SM
|
MM
|
SM
|
||||||
|
PC
|
UPC
|
APC
|
PC
|
PC
|
UPC
|
PC
|
PC
|
APC
|
||
|
Insertion Loss (Typical)
|
dB
|
≤0.3
|
≤0.2
|
≤0.3
|
≤0.2
|
≤0.3
|
≤0.2
|
≤0.2
|
≤0.3
|
≤0.3
|
|
Return Loss
|
dB
|
≥45
|
≥50
|
≥60
|
≥30
|
≥45
|
≥50
|
≥35
|
≥55
|
≥75
|
|
Exchangeability
|
dB
|
≤0.2
|
≤0.2
|
≤0.2
|
||||||
|
Repeatability
|
dB
|
≤0.2
|
≤0.2
|
≤0.2
|
||||||
|
Durability
|
Time
|
>1000
|
>1000
|
>1000
|
||||||
|
Operating Temperature
|
°C
|
-40~75
|
-40~75
|
-40~75
|
||||||
|
Storage Temperature
|
°C
|
-45~85
|
-45~85
|
-45~85
|
||||||
