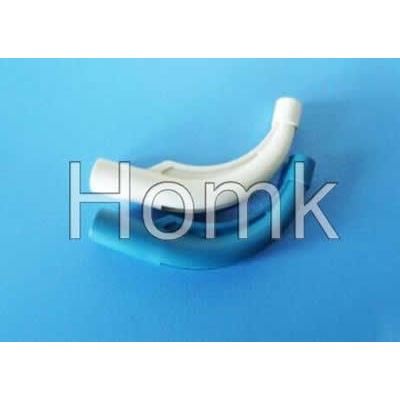

45 Degree Fiber Optic Connector
45 Degree Fiber Optic Connector
Specifications
1.SM MM Ferrule
2.45 90 degree boot
3.0.9 / 2.0 / 3.0mm Boot
4.Blue Beige Green Red Black White Boot
5.RoHS, SGS Complia
Fetures
> Compliant with Telcordia,GR-326-CORE,TIA/EIA and IEC
> Superior Quality Standard PC/UPC/APC Polishing
> Customer Defined Specifications
> RoHS Compliance
> Environmental Stable
> Low Insertion Loss & back Reflection
Applications
> CATV Networks
> Telecommunication Networks
> Local Area Networks
> FTTH and FTTx
> Active Device Termination
> Testing Instruments
| SPECIFICATIONS | ||
| Single mode | Multimode | |
| Insertion Loss | ≤0.20dB | ≤0.30dB |
| Return Loss | PC ≥50 dB APC ≥60 dB | |
| Durability | ≤0.2 dB typical change, 1000 matings | |
| Operating Temperature | -40 to + 85°C | -40 to + 85°C |
| Ferrule Spec
|
125.0+1/-0μm, Concentricity: ≤1.0μm | 125μm, Concentricity: ≤3μm |
| 125.3+1/-0μm, Concentricity: ≤1.0μm | 127μm, Concentricity: ≤3μm | |
| 125.5+1/-0μm, Concentricity: ≤1.0μm | 128μm, Concentricity: ≤3μm | |
